Stationary Pumps

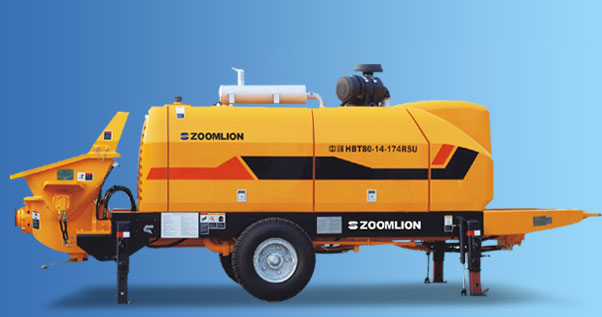

Model: HBT80.14.174RS

1.Stability:
•Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit.
•Intelligent control system: advanced technology, easy operation and high reliability electrical system.

2.Highefficiency:
•Hopper: High Suction Capacity due to Large Angle Fluent Hopper Design with less feed accumulation area.
•S valve: well designed S valve ensures the smooth flow of concrete.
•Rapid concrete piston substitution: the pistons can be changed easily by a single operator without any special tools in 15minutes. The hydraulic cylinder has an extra stroke to allow the piston to extend from the concrete cylinder.

3.Energysaving :
•Low running costs.
•Hydraulic oil treatment: equipped with multistage fine filtration and water sdparation devices, to extend hydraulic components lifetime and reduce oil changes.
•Super wear-resistant component: special steel alloy made spectacles wear plate and cutting ring plus high wear-resistant cast steel material made mixing blade, ensuring a longer lifetime of weary spare parts.
•Hydraulic Low / High Pressure Mode Shifting: high/low pressure working mode is easily selected at the press of a button for variable heights of pumping.

Model HBT80.14.174RS
Drive power KW 174
Max. Concrete Output m3/h 85/55
Max. Concrete Pressure bar 80/140
Concrete Cylinder(diam x stroke) mm 200x1800
Strokes 1/min 13/7
Hopper Capacity L 600
Filling height mm 1400
