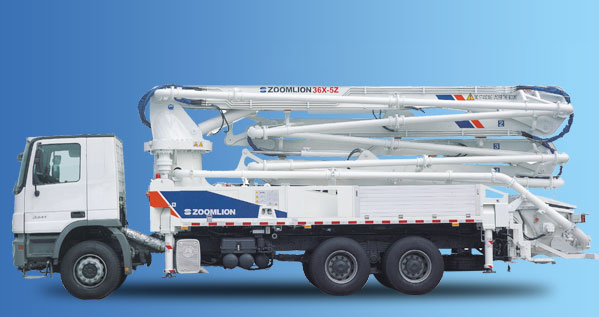

Truck Mounted Pump
Model: 36X-5Z

 Compact in design, 36m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long use.
• Agile placing boom with 5 arms with unfolding height 8.52m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control..

Model Unit 36X-5Z
Pump Unit Max. Theor. output  m3/h 120/80
Max. Theor. concrete output Pressure MPa 7/11
Rated working pressure  MPa 35
Pumping frequency  min-1 24/15
Hopper capacity  L 550
Filling height  mm 1540
Hydraulic system type   opened loop
Distribution valve   S valve
Oil cylinder dia.×stroke mm φ130×2100
Concrete cylinder dia.×stroke            mm φ230×2100
Hydraulic oil cooling   Wind cooling
Recommended concrete slump                     cm 12~23
Max. aggregate dimension                     mm 40
Boom Section Structure type   36X-5Z
Placing depth                                 m 35.5
Max. horizontal distance                        m 35.15
Max. placing depth                            m 23.13
Slewing angle   ±350°
Boom number   5
The length of boom section                         mm 7700/5950/5950/5950/5950
Sections folding angle   90°/180°/230°/180°/250°
Pipe diameter                                 mm 125
End hose length                              mm 3000
Min. height of opening placing boom         mm 8520
Outriggers span  (front×rear×side)   mm 6030×5950×7300
Upper Structure Upper Structure Mass          kg 25000
Dimensions(L×W×H) mm 10740×2500×3886
