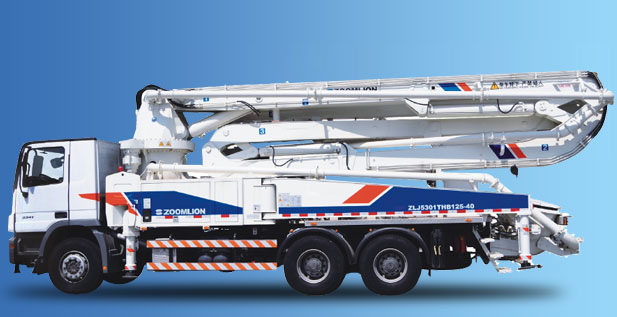

Truck Mounted Pump
Model: 40X-5RZ

• Compact in design, 40m pump mounted on 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 8.5m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
•Rich in configurations and high quality components.

Distribution valve

S-valve

Max. Concrete Output

m3/h

140/90

Max. Concrete Pressure

bar

70/110

Delivery Cylinder

mm

230

Stroke Length

mm

2100

Strokes

1/min

27/17

Hopper Capacity

L

550

Filling height

mm

1540

Hydraulic System

Open

Hydraulic oil cooling

Double fans

High/Low Press. Switch

Manual

Lubrication on pump

Automatic

Lubrication on hopper

Automatic

GPS Data Manage

Optional

Boom Control Valve

Proportional

Number of Arms



5

Folding System



RZ

Max. Reach Vertical

m

40.5

Max. Reach Horizontal

m

36.5

Max. Reach Depth

m

27

Min. Unfolding Height

m

8.5

End Hose Length

m

3

Pipeline

DN125/5.5

Slewing Range

±270°

Slewing Motor

1 Motor

Remote Control System

Radio

Water Pump

20L/min, 60bar

Tool kits with box

Standard


Technical data and characteristic subject to modifications without notice.
