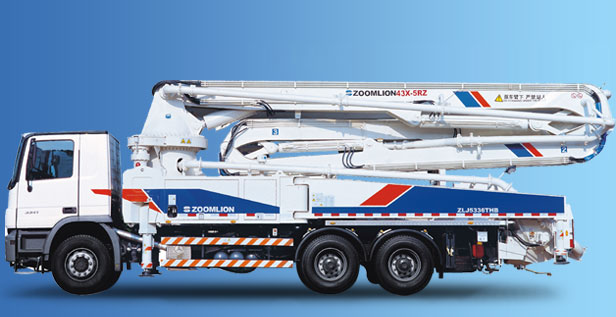

Truck Mounted Pump
Model: 43X-5RZ

• Compact in design, 43m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.1m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

Model Unit 43X-5RZ
Pump Unit Max. Theor. output                        m3/h 140/90
Max. Theor. concrete output Pressure      MPa 7/11
Rated working pressure                       MPa 35
Pumping frequency                              min-1 27/17
Hopper capacity                     L 550
Filling height                                   mm 1540
Hydraulic system type   opened loop
Distribution valve   S valve
Oil cylinder dia.×stroke                    mm φ130×2100
Concrete cylinder dia.×stroke             mm φ230×2100
Hydraulic oil cooling   Wind cooling
Recommended concrete slump                    cm 12~23
Max. aggregate dimension                     mm 40
Boom Section Structure type   43X-5RZ
Placing depth                                m 43
Max. horizontal distance                      m 39
Max. placing depth                           m 30.46
Slewing angle   ±270°
Boom number   5
The length of boom section                        mm 8350/7250/7050/7930/8420
Sections folding angle   90°/180°/180°/240°/200°
Pipe diameter                                mm 125
End hose length mm 3000
Min. height of opening placing boom        mm 9100
Outriggers span  (front×rear×side)   mm 8220×8800×8900
